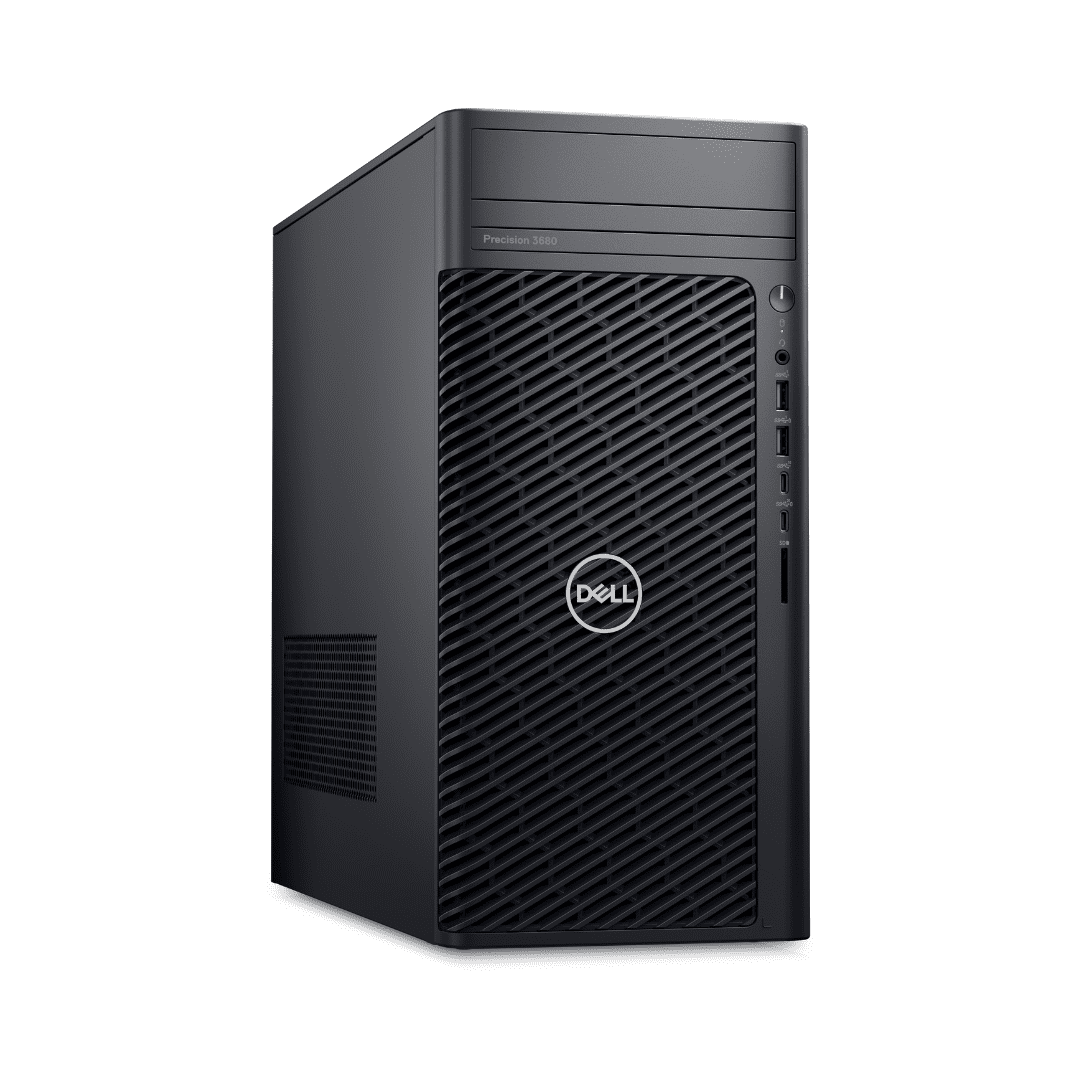

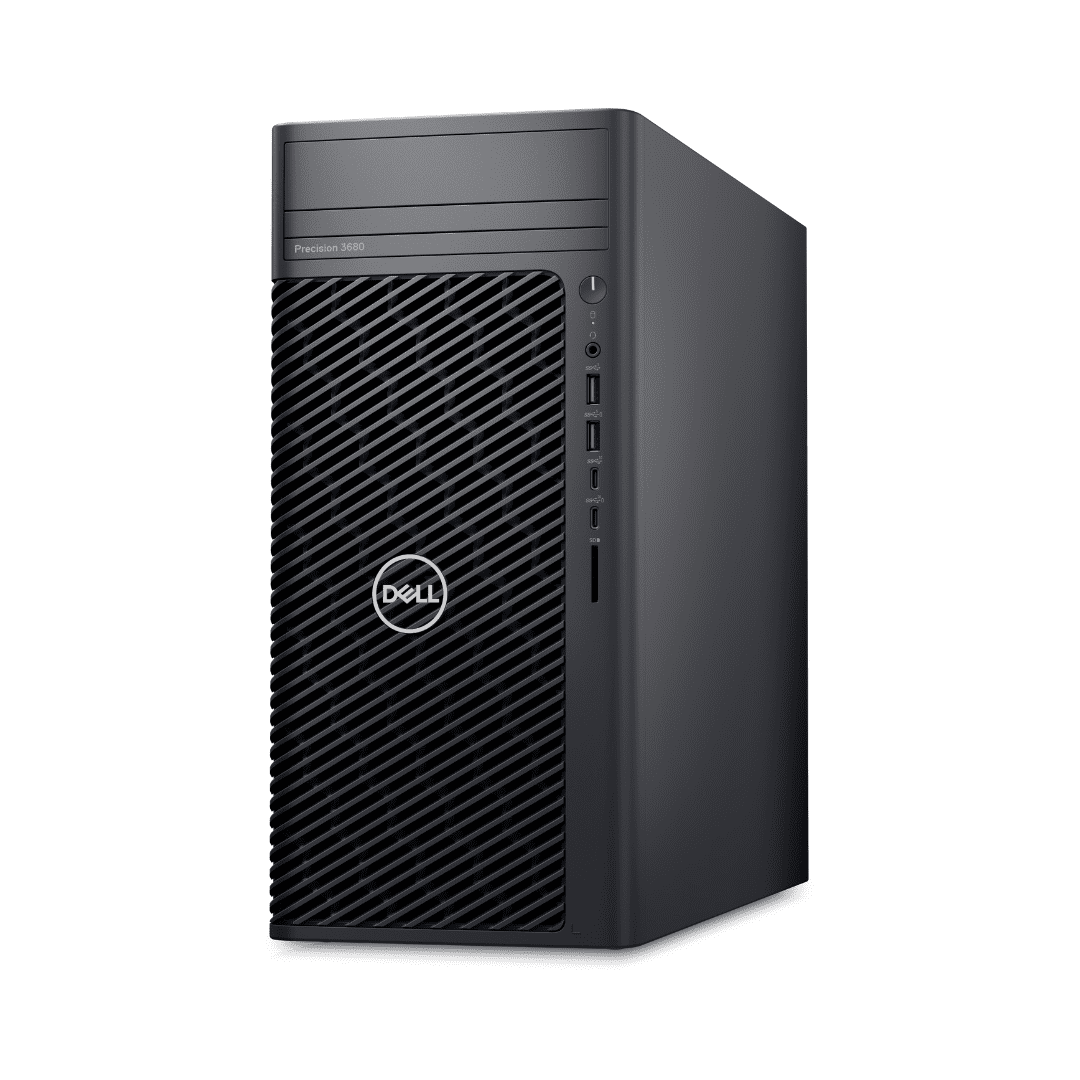

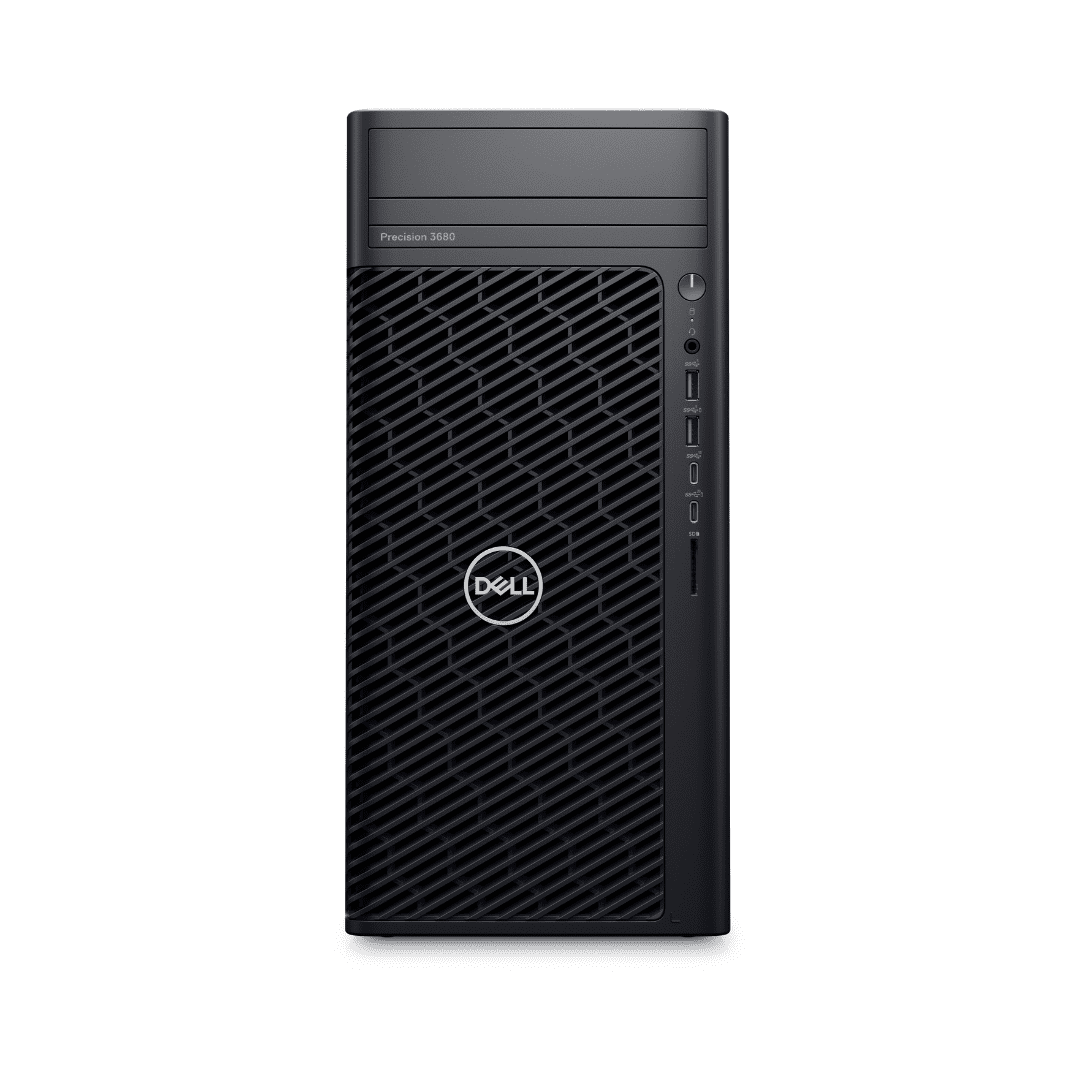

Dell Precision Tower 3680 Series
Professional Workstation. ISV Certified. Uncompromising Performance.
| Model | Processor | Memory | Storage | Graphics | OS | Warranty | Part Number |
|---|---|---|---|---|---|---|---|
| Precision Tower 3680 | Intel Core i7-14700 | 16GB DDR5 | 512GB SSD + 2TB HDD | NVIDIA RTX A400 4GB | Win 11 Pro | 3Y ProSupport | T3680-I7-16-512+2T-A400 |
| Precision Tower 3680 | Intel Core i7-14700 | 16GB DDR5 | 512GB SSD + 2TB HDD | NVIDIA RTX A1000 8GB | Win 11 Pro | 3Y ProSupport | T3680-I7-16-512+2T-A1000 |
| Precision Tower 3680 | Intel Core i7-14700 | 16GB DDR5 | 1TB SSD | NVIDIA RTX A400 4GB | Win 11 Pro | 3Y ProSupport | T3680-I7-16-1T-A400 |
| Precision Tower 3680 | Intel Core i7-14700 | 16GB DDR5 | 1TB SSD | NVIDIA RTX A1000 8GB | Win 11 Pro | 3Y ProSupport | T3680-I7-16G-1T-A1000 |
Common Specifications (All Models)
| Attribute | Specification |
|---|---|
| Brand | Dell |
| Series | Precision Tower 3680 |
| Chassis Type | Tower (MT – Mini Tower) |
| Processor | Intel Core i7-14700 (20 Cores, 28 Threads) |
| Processor Architecture | 14th Gen Raptor Lake Refresh |
| Processor Cache | 33 MB Intel Smart Cache |
| Max Frequency | Up to 5.4 GHz |
| Memory Type | DDR5 (expandable) |
| Memory Configuration | 16GB |
| Memory Slots | 4 x DIMM slots (expandable up to 128GB) |
| Operating System | Windows 11 Pro |
| Condition | New |
| Optical Disk Drive | Optional (available upon request) |
| Ethernet | Gigabit Ethernet (RJ45) |
| Wireless | Optional Wi-Fi + Bluetooth configuration |
| Security Features | TPM 2.0, Chassis Intrusion Switch, Kensington Lock Slot |
| Management | Dell Optimizer, Intel vPro (select models) |
| Warranty | 3 Years ProSupport (Next Business Day Onsite) |
Ports
| Location | Ports |
|---|---|
| Front I/O | • USB 3.2 Gen 2 ports • USB 3.2 Gen 2 Type-C • Universal Audio Jack • Optional SD Card Reader |
| Rear I/O | • USB 3.2 Gen 2 ports • USB 2.0 ports • HDMI port • DisplayPort • RJ45 Gigabit Ethernet • Audio jacks • Power Connector • Optional Serial/PS2 ports |
Expansion Slots
| Slot Type | Quantity |
|---|---|
| PCIe Gen5 x16 | 1 |
| PCIe Gen4 x16 (wired as x4) | 1 |
| PCIe Gen3 x1 | 2 |
| PCIe Gen4 x4 (open) | 1 |
| SATA 3.0 HDD Bays | 4 |
| SATA 3.0 ODD Bay | 1 |
| M.2 SSD Slots | 3 |
Model-Specific Details
Precision Tower 3680 – i7-14700, 512GB+2TB, RTX A400
| Attribute | Specification |
|---|---|
| Processor | Intel Core i7-14700 (20 Cores, 28 Threads, up to 5.4 GHz) |
| Memory | 16GB DDR5 |
| Storage | 512GB M.2 PCIe NVMe SSD + 2TB 7200RPM HDD |
| Graphics | NVIDIA RTX A400 4GB GDDR6 (Professional Graphics) |
| Warranty | 3 Years ProSupport (Next Business Day Onsite) |
| Part Number | T3680-I7-16-512+2T-A400 |
| Ideal For | Entry-level professional workstations, CAD, 3D modeling, content creation |
Precision Tower 3680 – i7-14700, 512GB+2TB, RTX A1000
| Attribute | Specification |
|---|---|
| Processor | Intel Core i7-14700 (20 Cores, 28 Threads, up to 5.4 GHz) |
| Memory | 16GB DDR5 |
| Storage | 512GB M.2 PCIe NVMe SSD + 2TB 7200RPM HDD |
| Graphics | NVIDIA RTX A1000 8GB GDDR6 (Professional Graphics) |
| Warranty | 3 Years ProSupport (Next Business Day Onsite) |
| Part Number | T3680-I7-16-512+2T-A1000 |
| Ideal For | Mid-range professional workstations, advanced CAD, simulation, rendering |
Precision Tower 3680 – i7-14700, 1TB SSD, RTX A400
| Attribute | Specification |
|---|---|
| Processor | Intel Core i7-14700 (20 Cores, 28 Threads, up to 5.4 GHz) |
| Memory | 16GB DDR5 |
| Storage | 1TB M.2 PCIe NVMe SSD |
| Graphics | NVIDIA RTX A400 4GB GDDR6 (Professional Graphics) |
| Warranty | 3 Years ProSupport (Next Business Day Onsite) |
| Part Number | T3680-I7-16-1T-A400 |
| Ideal For | Entry-level professional workstations, all-flash storage performance |
Precision Tower 3680 – i7-14700, 1TB SSD, RTX A1000
| Attribute | Specification |
|---|---|
| Processor | Intel Core i7-14700 (20 Cores, 28 Threads, up to 5.4 GHz) |
| Memory | 16GB DDR5 |
| Storage | 1TB M.2 PCIe NVMe SSD |
| Graphics | NVIDIA RTX A1000 8GB GDDR6 (Professional Graphics) |
| Warranty | 3 Years ProSupport (Next Business Day Onsite) |
| Part Number | T3680-I7-16G-1T-A1000 |
| Ideal For | Mid-range professional workstations, maximum storage performance, graphics-intensive tasks |
NVIDIA Professional Graphics Comparison
| Feature | RTX A400 | RTX A1000 |
|---|---|---|
| GPU Memory | 4GB GDDR6 | 8GB GDDR6 |
| Memory Interface | 128-bit | 128-bit |
| CUDA Cores | 1,024 | 2,560 |
| RT Cores | 8 | 20 |
| Tensor Cores | 32 | 80 |
| Form Factor | Low-profile | Low-profile |
| ISV Certified | Yes | Yes |
| Ideal For | Entry-level CAD, basic 3D modeling | Mid-range CAD, simulation, rendering, AI |
Key Features
Professional Workstation Performance
Intel Core i7-14700 processor with 20 cores and 28 threads
Up to 5.4 GHz max frequency for demanding workloads
33 MB Intel Smart Cache
ISV Certified Graphics
NVIDIA RTX A400 / A1000 professional graphics
ISV certified for leading applications (AutoCAD, SolidWorks, Revit, etc.)
Optimized for reliability and performance
Flexible Storage Options
Dual-drive configurations (SSD + HDD) or all-flash options
Fast NVMe SSD for OS and applications
Large capacity HDD for data storage
Expandable Design
4 DIMM slots supporting up to 128GB DDR5
Multiple PCIe slots for expansion
4 HDD bays for massive storage capacity
Enterprise-Grade Support
3 Years ProSupport with Next Business Day Onsite service
24/7 technical support
Priority access to experts
Professional Certifications
ISV certified for professional applications
ENERGY STAR certified
EPEAT registered
Available Configurations Summary
| Part Number | Storage | Graphics | Memory | Warranty |
|---|---|---|---|---|
| T3680-I7-16-512+2T-A400 | 512GB SSD + 2TB HDD | RTX A400 4GB | 16GB DDR5 | 3Y ProSupport |
| T3680-I7-16-512+2T-A1000 | 512GB SSD + 2TB HDD | RTX A1000 8GB | 16GB DDR5 | 3Y ProSupport |
| T3680-I7-16-1T-A400 | 1TB SSD | RTX A400 4GB | 16GB DDR5 | 3Y ProSupport |
| T3680-I7-16G-1T-A1000 | 1TB SSD | RTX A1000 8GB | 16GB DDR5 | 3Y ProSupport |
Package Contents
Dell Precision Tower 3680 Workstation
Power Cord

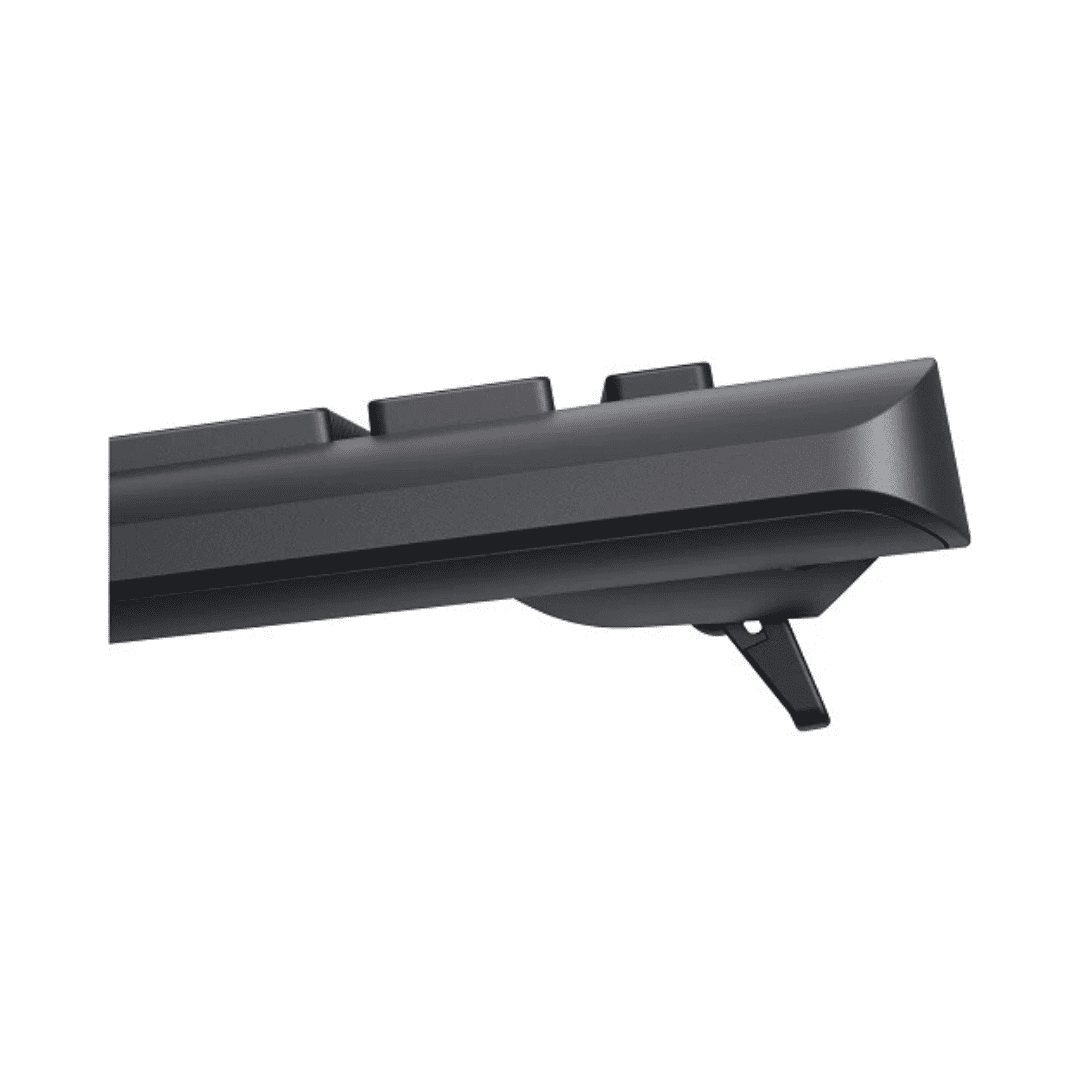

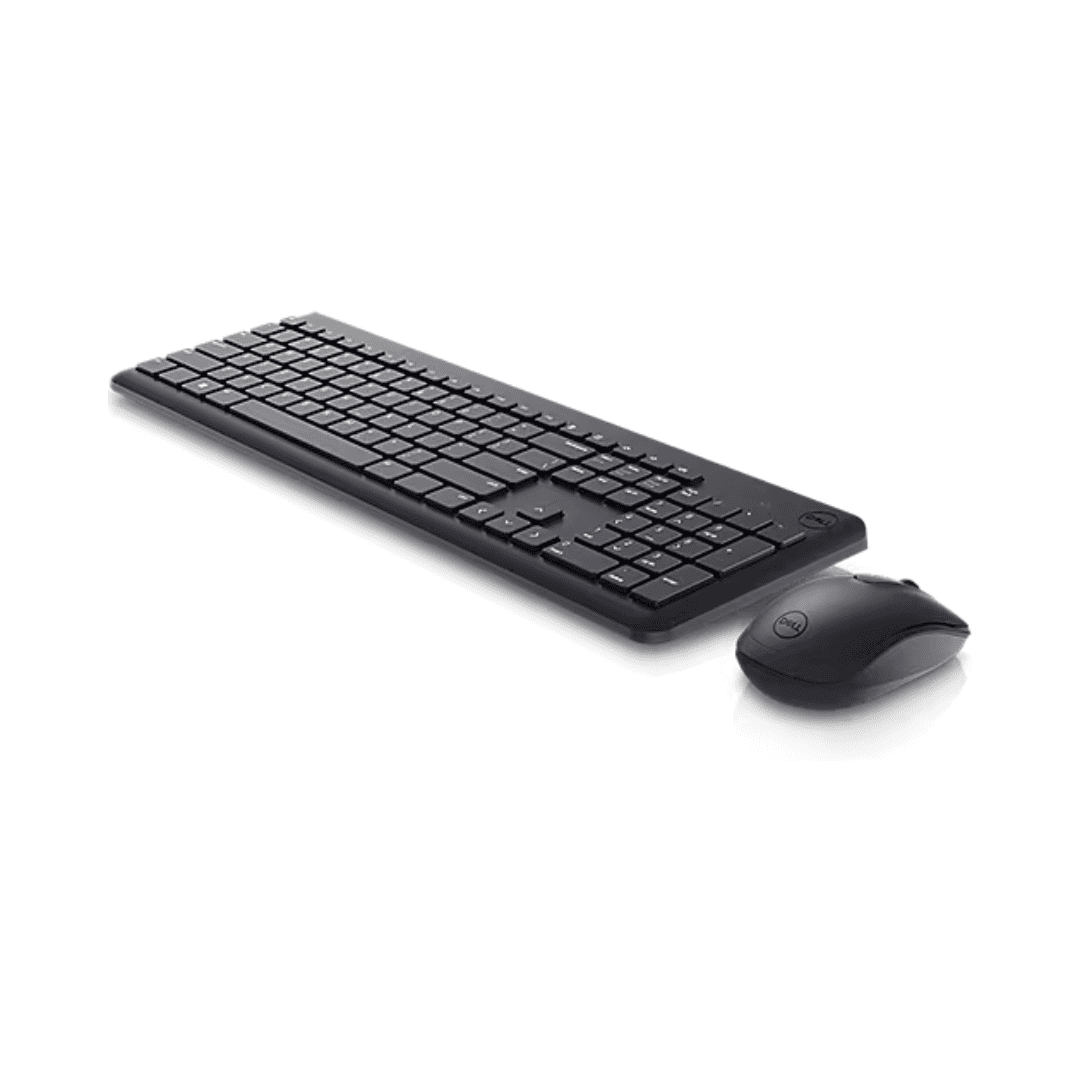

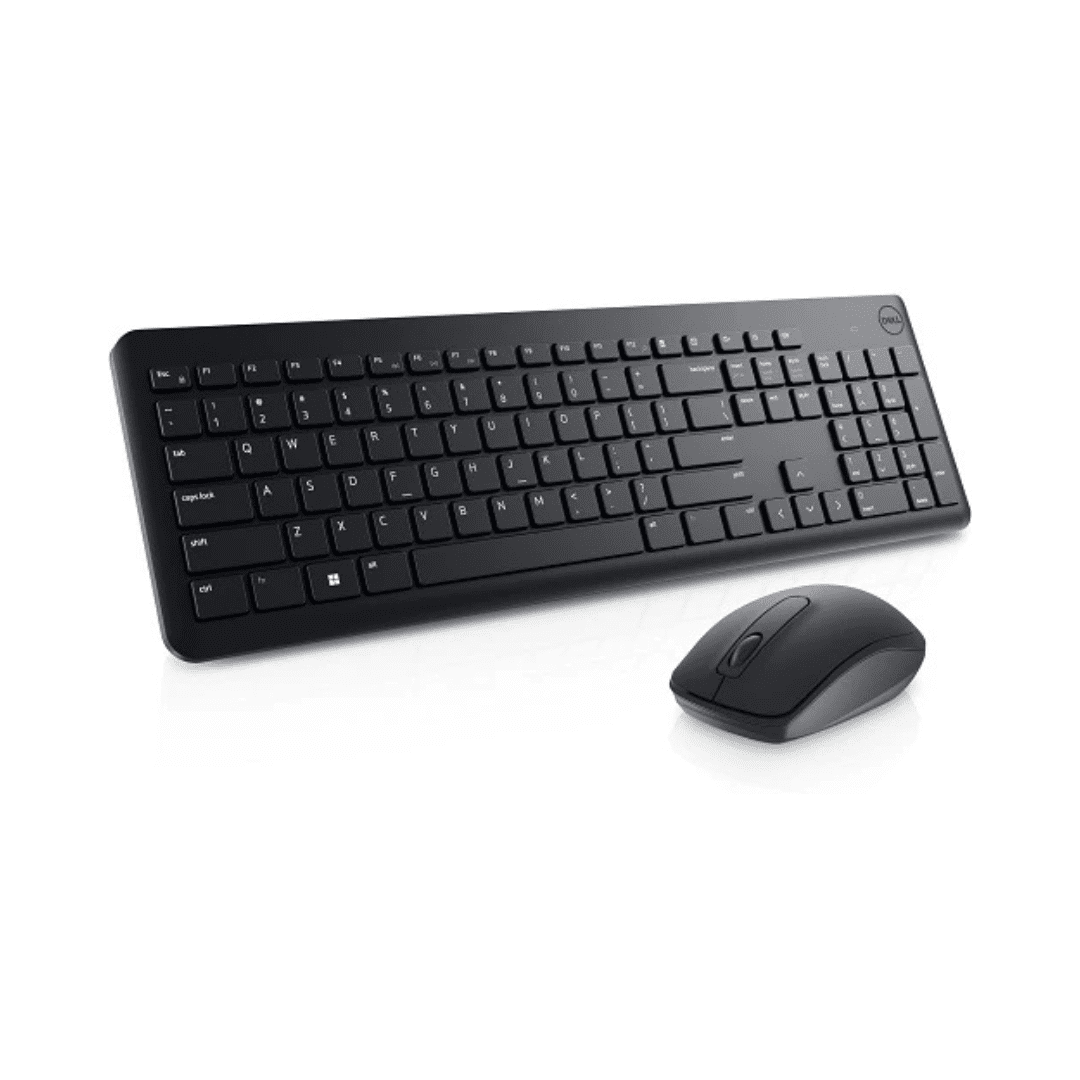

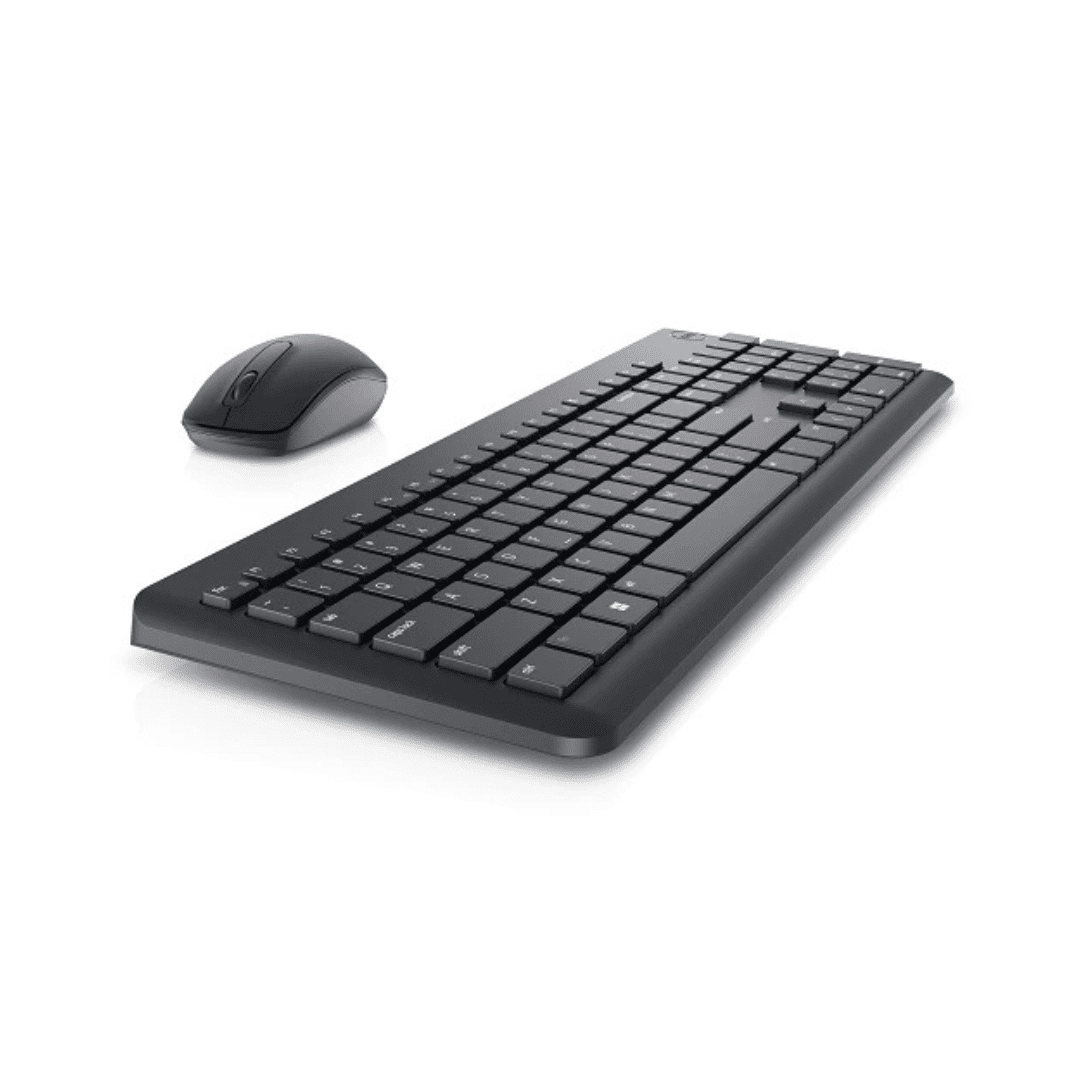

Dell KB216 Wired Keyboard (optional)
Dell MS116 Wired Mouse (optional)
Quick Start Guide
Documentation
3 Years ProSupport Documentation
