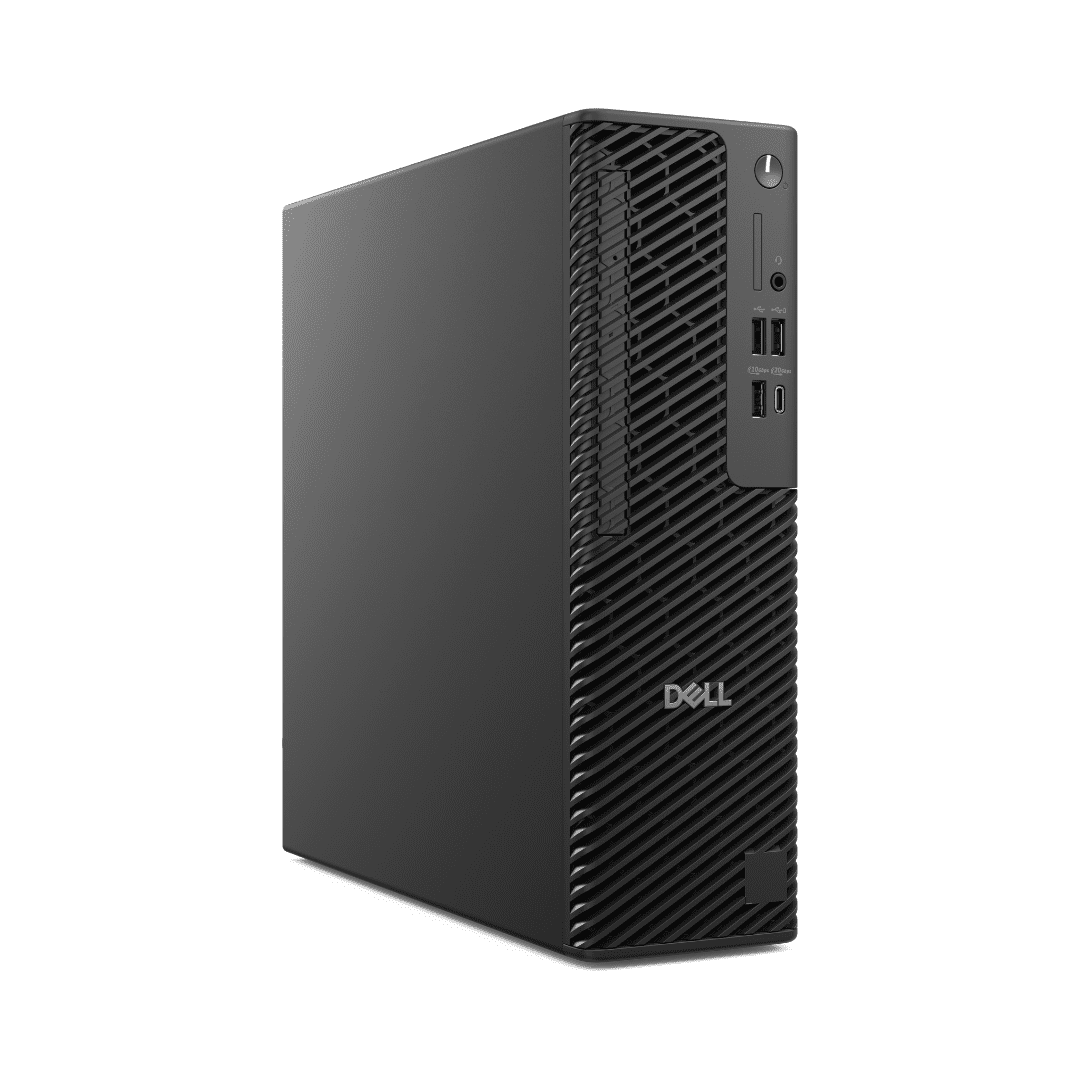

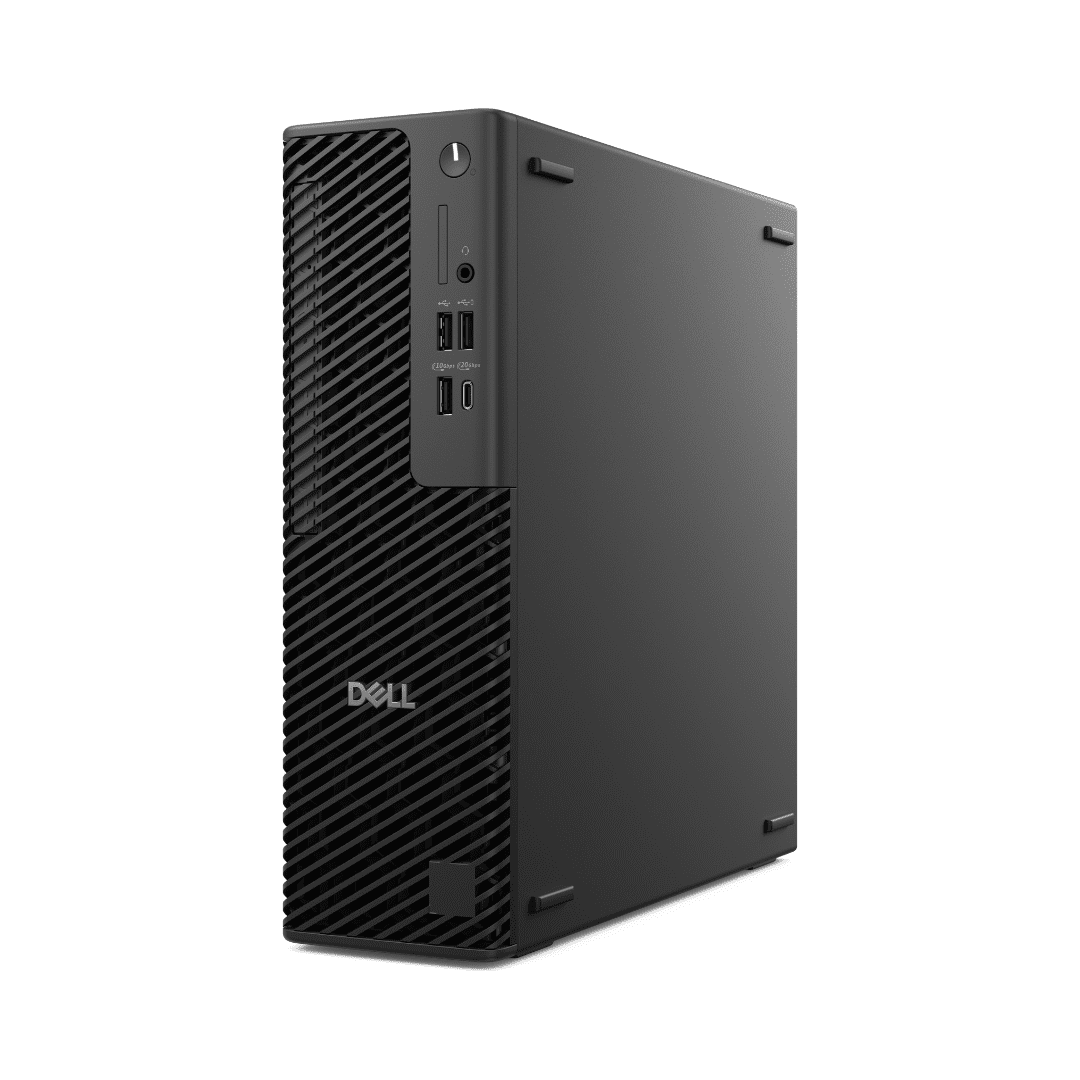

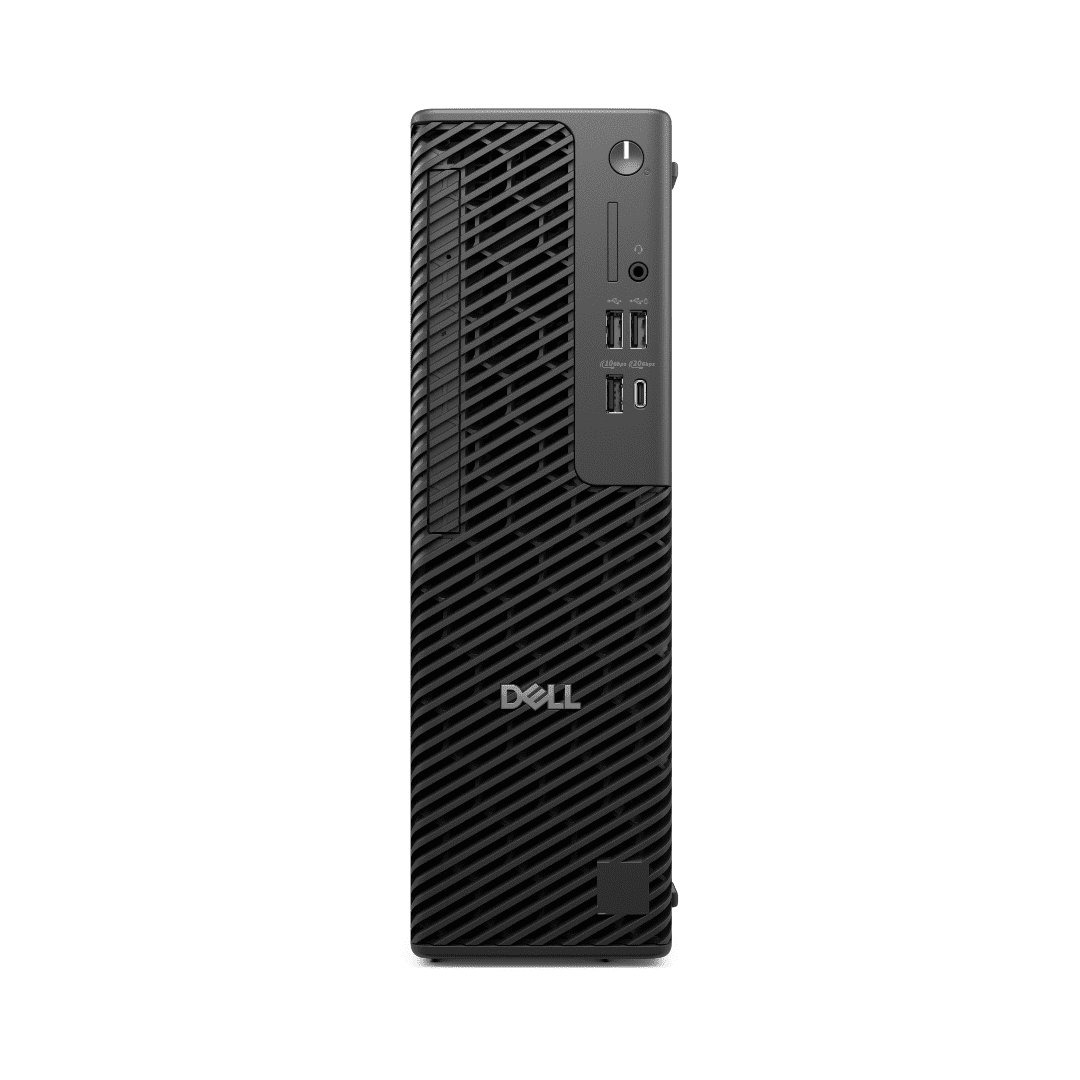

Dell Pro Max Slim (FCS1250) Series
Next-Gen Intel Core Ultra Performance. Professional Graphics. Slim Profile.
| Model | Processor | Memory | Storage (SSD) | Storage (HDD) | Graphics | Graphics Memory | Market | Order Code |
|---|---|---|---|---|---|---|---|---|
| Dell Pro Max Slim | Intel Core Ultra 7 265K | 32GB DDR5 | 2TB SSD | – | NVIDIA RTX 2000 ADA | 16GB | B2B | FCS1250-U7265K-32-2TB-RTXA2000-W11P |
| Dell Pro Max Slim | Intel Core Ultra 7 265 | 16GB DDR5 | 512GB SSD | 2TB HDD | NVIDIA A400 | 4GB | SNS | FCS1250-U7265-16-512+2TB-A400-W11P |
| Dell Pro Max Slim | Intel Core Ultra 7 265 | 16GB DDR5 | 512GB SSD | 2TB HDD | NVIDIA A1000 | 8GB | SNS | FCS1250-U7265-16-512+2TB-A1000-W11P |
| Dell Pro Max Slim | Intel Core Ultra 7 265 | 16GB DDR5 | 1TB SSD | – | NVIDIA A400 | 4GB | B2B | FCS1250-U7265-16-1TB-A400-W11P |
| Dell Pro Max Slim | Intel Core Ultra 7 265 | 16GB DDR5 | 1TB SSD | – | NVIDIA A1000 | 8GB | B2B | FCS1250-U7265-16-1TB-A1000-W11P |
Common Specifications (All Models)
| Attribute | Specification |
|---|---|
| Brand | Dell |
| Series | Pro Max Slim (FCS1250) |
| Chassis Type | Slim Form Factor (SFF) |
| Operating System | Windows 11 Pro |
| Condition | New |
| Processor Architecture | Intel Core Ultra Series 2 |
| AI Engine | Integrated NPU (Neural Processing Unit) |
| Memory Type | DDR5 |
| Memory Slots | 4 x DIMM slots (expandable) |
| Storage Expansion | Multiple M.2 SSD slots + HDD bay |
| Ethernet | Gigabit Ethernet (RJ45) |
| Wireless | Optional Wi-Fi + Bluetooth configuration |
| Security Features | TPM 2.0, Chassis Intrusion Switch, Kensington Lock Slot |
| Management | Dell Optimizer, Intel vPro (select models) |
| Mounting | VESA mount compatible (bracket optional) |
Ports
| Location | Ports |
|---|---|
| Front I/O | • USB 3.2 Gen 2 ports • USB 3.2 Gen 2 Type-C • Universal Audio Jack • Optional SD Card Reader |

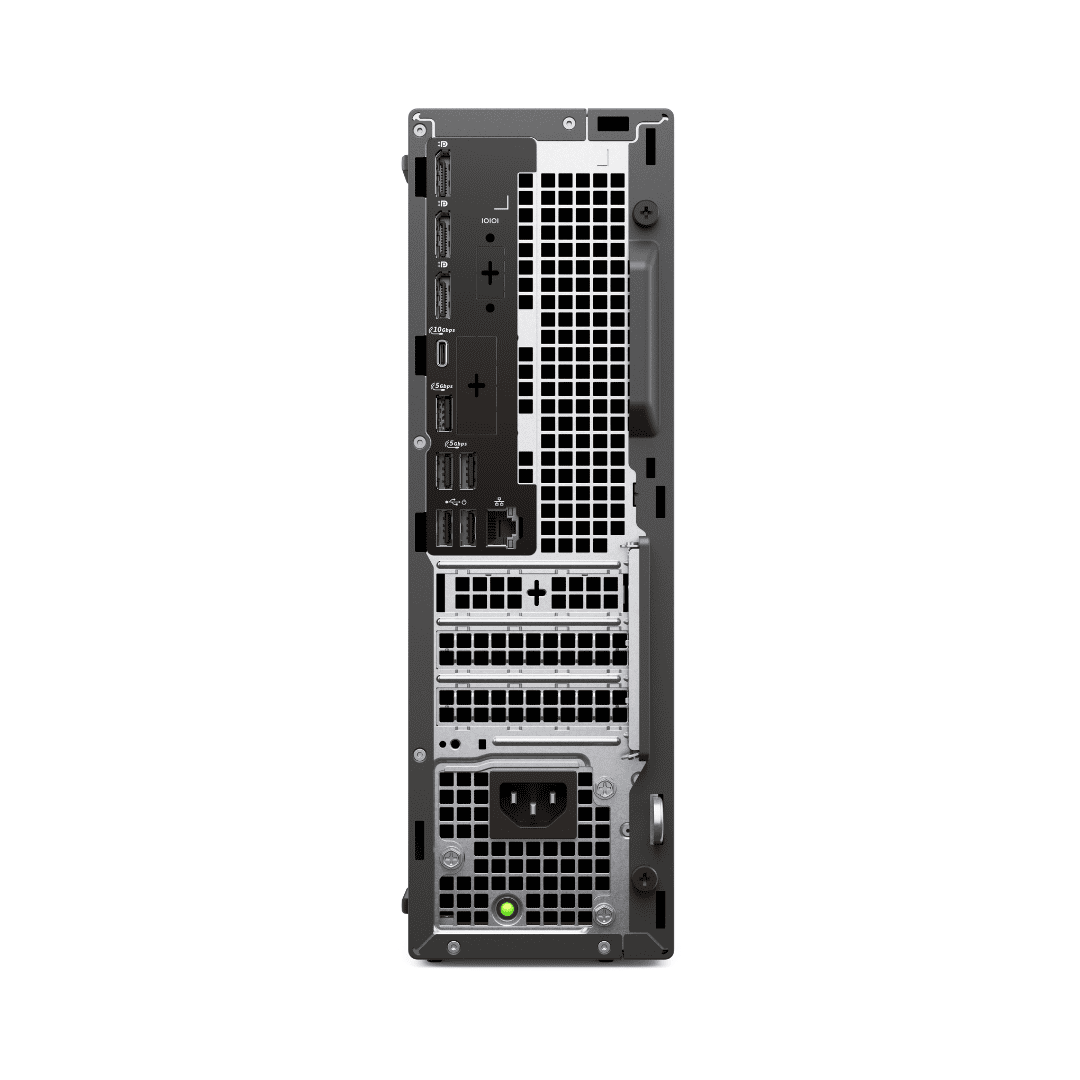

| Rear I/O | • USB 3.2 Gen 2 ports • USB 2.0 ports • HDMI port • DisplayPort • RJ45 Gigabit Ethernet • Audio jacks • Power Connector • Optional Serial/PS2 ports |
Expansion Slots
| Slot Type | Quantity |
|---|---|
| PCIe Gen5 x16 | 1 |
| PCIe Gen4 x4 | 1 (low-profile) |
| PCIe Gen3 x1 | 1 (low-profile) |
| M.2 SSD Slots | 2 |
| SATA HDD Bay | 1 (for 2.5″ or 3.5″ drive) |
Model-Specific Details
High-End B2B Model (Intel Core Ultra 7 265K)
| Model | FCS1250-U7265K-32-2TB-RTXA2000-W11P |
|---|---|
| Processor | Intel Core Ultra 7 265K |
| Processor Cores | 20 Cores |
| Processor Threads | 20 Threads |
| Processor Cache | 30 MB |
| Max Frequency | Up to 5.3 GHz |
| Memory | 32GB DDR5 |
| Storage | 2TB NVMe SSD |
| Graphics | NVIDIA RTX 2000 ADA |
| Graphics Memory | 16GB GDDR6 |
| Target Market | B2B |
| Ideal For | High-end professional workstations, CAD, 3D modeling, simulation |
SNS Models (Dual-Drive Configurations)
| Model | FCS1250-U7265-16-512+2TB-A400-W11P | FCS1250-U7265-16-512+2TB-A1000-W11P |
|---|---|---|
| Processor | Intel Core Ultra 7 265 | Intel Core Ultra 7 265 |
| Processor Cores | 20 Cores | 20 Cores |
| Processor Threads | 20 Threads | 20 Threads |
| Processor Cache | 30 MB | 30 MB |
| Max Frequency | Up to 5.3 GHz | Up to 5.3 GHz |
| Memory | 16GB DDR5 | 16GB DDR5 |
| Storage | 512GB NVMe SSD + 2TB HDD | 512GB NVMe SSD + 2TB HDD |
| Graphics | NVIDIA A400 | NVIDIA A1000 |
| Graphics Memory | 4GB GDDR6 | 8GB GDDR6 |
| Target Market | SNS | SNS |
| Ideal For | Entry-level professional workstations, balanced storage | Mid-range professional workstations, enhanced graphics |
B2B All-Flash Models
| Model | FCS1250-U7265-16-1TB-A400-W11P | FCS1250-U7265-16-1TB-A1000-W11P |
|---|---|---|
| Processor | Intel Core Ultra 7 265 | Intel Core Ultra 7 265 |
| Processor Cores | 20 Cores | 20 Cores |
| Processor Threads | 20 Threads | 20 Threads |
| Processor Cache | 30 MB | 30 MB |
| Max Frequency | Up to 5.3 GHz | Up to 5.3 GHz |
| Memory | 16GB DDR5 | 16GB DDR5 |
| Storage | 1TB NVMe SSD | 1TB NVMe SSD |
| Graphics | NVIDIA A400 | NVIDIA A1000 |
| Graphics Memory | 4GB GDDR6 | 8GB GDDR6 |
| Target Market | B2B | B2B |
| Ideal For | Entry-level professional workstations, all-flash performance | Mid-range professional workstations, all-flash performance |
NVIDIA Graphics Comparison
| Feature | A400 | A1000 | RTX 2000 ADA |
|---|---|---|---|
| GPU Memory | 4GB GDDR6 | 8GB GDDR6 | 16GB GDDR6 |
| Memory Interface | 128-bit | 128-bit | 128-bit |
| CUDA Cores | 1,024 | 2,560 | 2,816 |
| RT Cores | 8 | 20 | 22 |
| Tensor Cores | 32 | 80 | 88 |
| Form Factor | Low-profile | Low-profile | Low-profile |
| Power Consumption | 50W | 50W | 70W |
| Target Use | Entry CAD | Mid-range CAD | High-end Professional |
Key Features
Next-Gen Intel Core Ultra Performance
Intel Core Ultra 7 265/265K processors with up to 20 cores
Integrated NPU for AI acceleration
Up to 5.3 GHz max frequency
Slim Form Factor Design
Space-saving chassis ideal for constrained environments
VESA mount compatible for discreet placement
Professional aesthetics for modern offices
Professional Graphics Options
Range from entry-level NVIDIA A400 to high-end RTX 2000 ADA
ISV certified for professional applications
Low-profile graphics cards for slim chassis
Flexible Storage Configurations
All-flash options for maximum performance
Dual-drive configurations (SSD + HDD) for capacity and speed
Multiple M.2 slots for expansion
Memory Options
16GB or 32GB DDR5 (expandable)
High-speed memory for demanding applications
Targeted Configurations
B2B models with high-end processors and professional graphics
SNS models with balanced performance and value
Available Configurations Summary
| Order Code | Processor | Memory | Storage | Graphics | Graphics Memory | Market |
|---|---|---|---|---|---|---|
| FCS1250-U7265K-32-2TB-RTXA2000-W11P | Ultra 7 265K | 32GB | 2TB SSD | RTX 2000 ADA | 16GB | B2B |
| FCS1250-U7265-16-512+2TB-A400-W11P | Ultra 7 265 | 16GB | 512GB SSD + 2TB HDD | A400 | 4GB | SNS |
| FCS1250-U7265-16-512+2TB-A1000-W11P | Ultra 7 265 | 16GB | 512GB SSD + 2TB HDD | A1000 | 8GB | SNS |
| FCS1250-U7265-16-1TB-A400-W11P | Ultra 7 265 | 16GB | 1TB SSD | A400 | 4GB | B2B |
| FCS1250-U7265-16-1TB-A1000-W11P | Ultra 7 265 | 16GB | 1TB SSD | A1000 | 8GB | B2B |
Package Contents
Dell Pro Max Slim Desktop
Power Cord
Quick Start Guide
Documentation
Optional: Dell Slim Keyboard & Mouse
Optional: VESA Mount Bracket
Key Features Summary
| Feature | Benefit |
|---|---|
| Intel Core Ultra 7 | 20 cores with integrated NPU for AI acceleration |
| Slim Form Factor | Space-saving design fits any workspace |
| Professional Graphics | NVIDIA RTX ADA / A-Series for ISV-certified performance |
| DDR5 Memory | High-speed memory for demanding applications |
| Flexible Storage | SSD+HDD or all-flash configurations |
| VESA Mount Compatible | Discreet placement behind monitors |
| Windows 11 Pro | Advanced security and management features |
