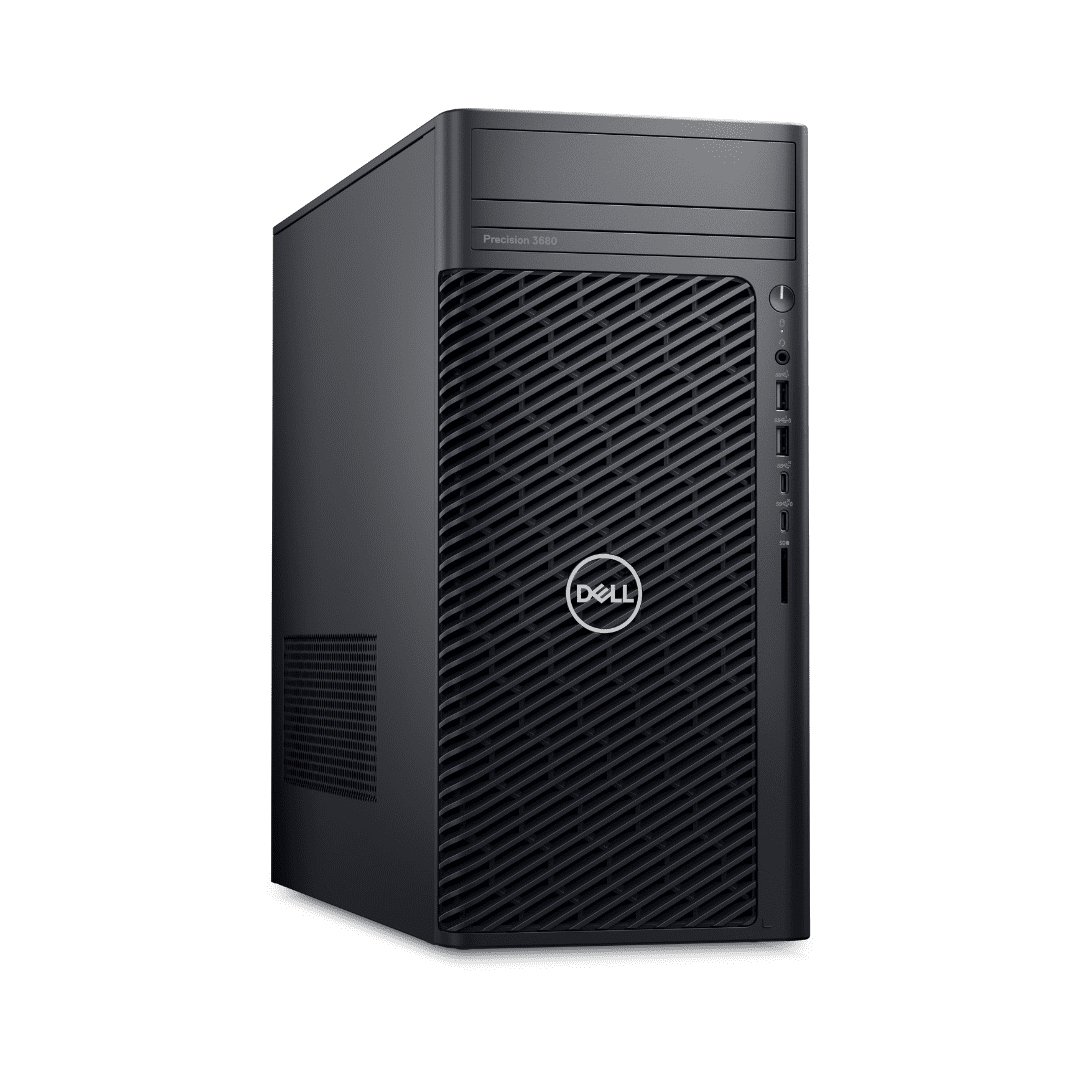

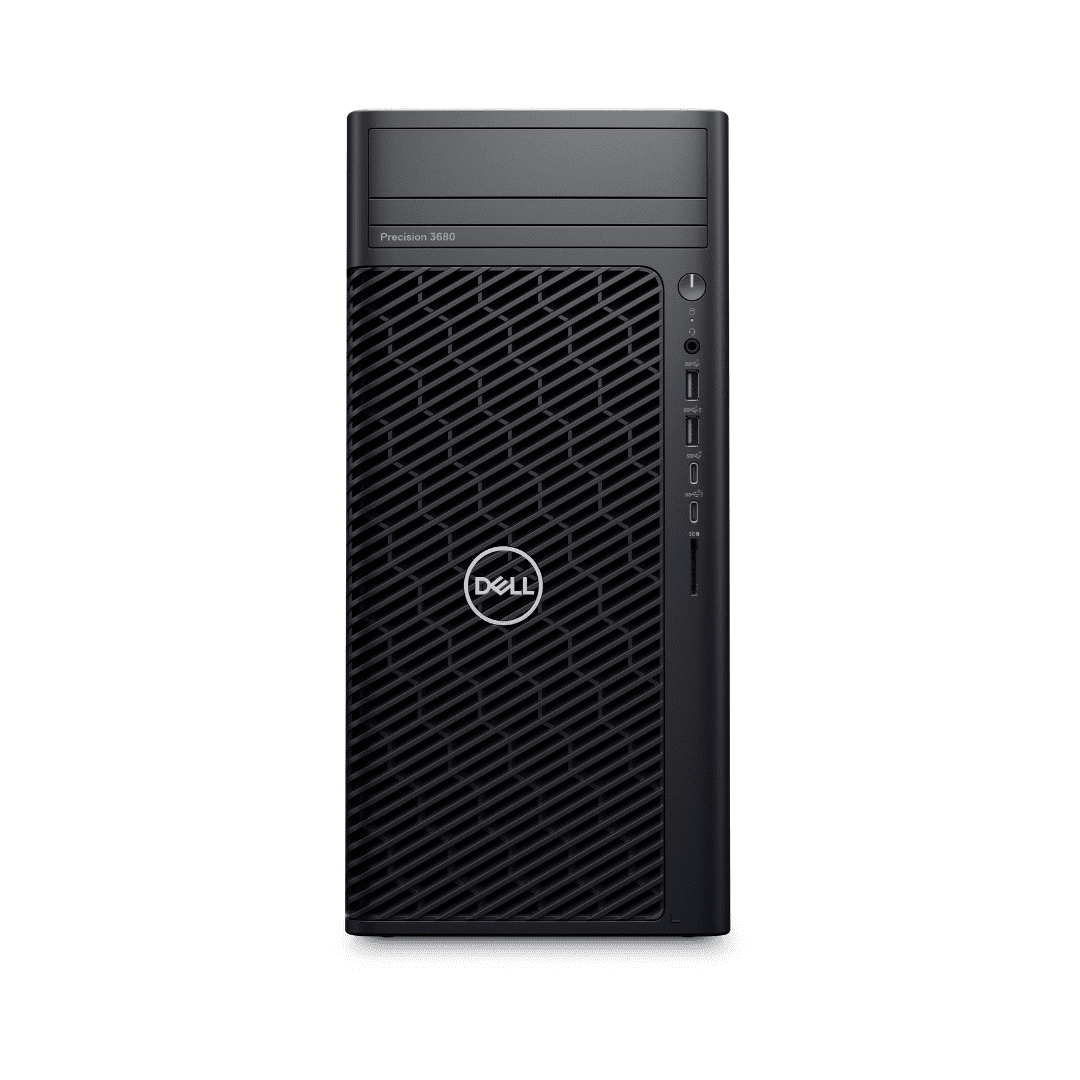

Product Specification: Dell Precision 3680 Tower Workstation
Model: Intel Core i7-14700, 16GB RAM, 1TB SSD, NVIDIA RTX A400, Windows 11 Pro
Overview
The Dell Precision 3680 Tower is an entry-level workstation designed for exceptional scalability and performance . Powered by a 14th Gen Intel Core i7 processor and professional NVIDIA RTX graphics, it delivers robust performance for demanding professional applications. This configuration features 16GB of DDR5 RAM and a fast 1TB NVMe SSD, housed in a highly expandable tower chassis suitable for a wide range of professional tasks .
Technical Specifications
| Component | Details |
|---|---|
| Model | Dell Precision 3680 Tower Workstation |
| Part Number / SKU | 1014433929 / Similar to cupt4003680s16bn2ojp |
| Form Factor | Tower – Highly expandable design |
| Processor | Intel® Core™ i7-14700 (14th Gen) with vPro® • Cores: 20 Cores (8 Performance-cores + 12 Efficient-cores) • Threads: 28 Threads • Max Turbo Frequency: Up to 5.4 GHz • Smart Cache: 33 MB • Processor Base Power: 65 W |
| Chipset | Intel W680 (implied by Precision lineup) |
| Memory (RAM) | 16 GB DDR5, 4400 MT/s (Non-ECC) • Configuration: 1 x 16 GB (single-channel) • Slots: 4 x DIMM slots • Maximum Supported: Up to 128 GB ECC or non-ECC memory |
| Storage | 1 TB M.2 2280 PCIe NVMe SSD (Gen 4.0), TLC, Class 40, SED Ready • Slots: Multiple M.2 and SATA slots available for expansion |
| Graphics | NVIDIA RTX A400 (Ampere architecture) – 4 GB GDDR6 • Form Factor: Professional, single-slot • Outputs: 4 x mini-DisplayPort (with adapters) • Max Displays: 4 • ISV Certified: Yes, for professional applications |
| Operating System | Windows 11 Pro (64-bit) |
| Power Supply | 500W (80 Plus Platinum) internal PSU (or 300W/1000W options) |
| Audio | Realtek ALC3204, High Definition Audio, internal speaker |
| Ethernet (LAN) | Integrated Gigabit Ethernet Controller (1 GbE) via RJ-45 port; optional 2.5 GbE available |
| Wireless | Intel® Wi-Fi 6E AX211, 2×2, 802.11ax + Bluetooth® 5.3 (included in many configurations) |
| Ports | Front: • 1 x USB 3.2 Gen 1 (5 Gbps) Type-A • 1 x USB 3.2 Gen 1 (5 Gbps) Type-A with PowerShare • 1 x USB 3.2 Gen 2 (10 Gbps) Type-C® • 1 x USB 3.2 Gen 2×2 (20 Gbps) Type-C® with PowerShare • 1 x Universal Audio Jack • 1 x SD Card Slot Rear: |
| Expansion Slots (Internal) |
• 1 x Full-Height Gen5 PCIe x16 slot • 1 x Full-Height Gen3 PCIe x4 slot • 1 x Full-Height Gen4 PCIe x4 open-ended slot • 1 x M.2 2230 slot (for Wi-Fi/Bluetooth) • 2 x M.2 2230/2280 PCIe Gen4 slots (for NVMe SSDs) • 1 x M.2 2280 PCIe Gen3 slot (for NVMe SSD) • 5 x SATA slots (for 3.5-inch HDD/ODD) |
| Drive Bays | Multiple 3.5-inch and 2.5-inch internal bays (expandable via SATA slots) |
| Optical Drive | Configurable – 8x DVD+/-RW 9.5mm Slimline Optical Disk Drive available |
| Chassis | Form Factor: Tower Color: Black Dimensions (H x W x D): 372.9 mm x 173.0 mm x 420.2 mm (14.68″ x 6.81″ x 16.54″) Weight (Minimum): 7.58 kg (16.71 lb) |
| Security |
• Discrete Trusted Platform Module (TPM) 2.0 • Kensington Security Slot • Chassis Intrusion Switch (optional) • SED (Self-Encrypting Drive) support • BIOS security features (passwords, secure boot) |
| Systems Management |
• Intel vPro® Enterprise (with supported processors) • Dell Client Command Suite • Dell Optimizer for Precision |
| ISV Certification | Certified for major ISV applications including CAD, engineering, and media creation tools |
| Environmental | Sustainability: ENERGY STAR Qualified, EPEAT Gold with Climate+ |
| Warranty | ✅ 3-YEAR WARRANTY |
| What’s Included | • Dell Precision 3680 Tower Workstation • Power Cord (AC) • Quick Start Guide & Documentation |
Key Features Summary
14th Gen Intel Core i7-14700 with vPro®: Powerful 20-core processor (8 P-cores + 12 E-cores) with up to 5.4 GHz turbo frequency – ideal for demanding professional workloads and enterprise manageability .
Professional NVIDIA RTX A400 Graphics: 4GB GDDR6 VRAM, ISV-certified for CAD, engineering, and professional applications – supports up to 4 displays .
Fast Memory & Storage: 16GB of DDR5-4400 RAM (upgradeable to 128GB) and a 1TB NVMe Gen4 SSD ensure lightning-fast performance and ample storage .
Expandable Tower Design: Spacious tower chassis with Gen5 PCIe x16 slot, multiple PCIe slots, M.2 slots, and SATA bays for extensive future upgrades .
ISV Certification: Guaranteed compatibility and performance for professional software applications.
Intel vPro® Platform: Hardware-based security and remote manageability for enterprise IT deployments .
Modern Connectivity: Comprehensive ports including dual 20Gbps USB-C on front, multiple USB-C on rear, DisplayPort, and optional 2.5Gb Ethernet .
Professional-Grade Reliability: Engineered for demanding workloads with rigorous testing and validation.
Dell Optimizer: AI-based optimization for performance, audio, and productivity.
Warranty Availability: 3-year warranty confirmed on reseller SKUs; available as upgrade from Dell .
Ideal For:
Engineers, architects, designers, content creators, and professionals requiring:
✅ ISV-certified workstation performance for CAD, BIM, and creative applications
✅ Professional NVIDIA RTX A400 graphics for reliable visualization
✅ Fast 1TB NVMe Gen4 storage for quick access to projects and files
✅ 16GB DDR5 memory (upgradeable to 128GB) for smooth multitasking
✅ Extensive expandability for future upgrades (PCIe Gen5 ready)
✅ Enterprise-grade security with vPro and TPM 2.0
✅ 3-year warranty (select upgrade or specific reseller SKU)
Contact for Quotation:
For pricing, availability, and warranty confirmation for this specific configuration (including 3-year warranty), please contact our sales team.
📱 WhatsApp: 017-910 0013
📧 Email: ecomm@ithinktech.com.my
*PLEASE CHAT WITH US BEFORE PLACING YOUR ORDER
