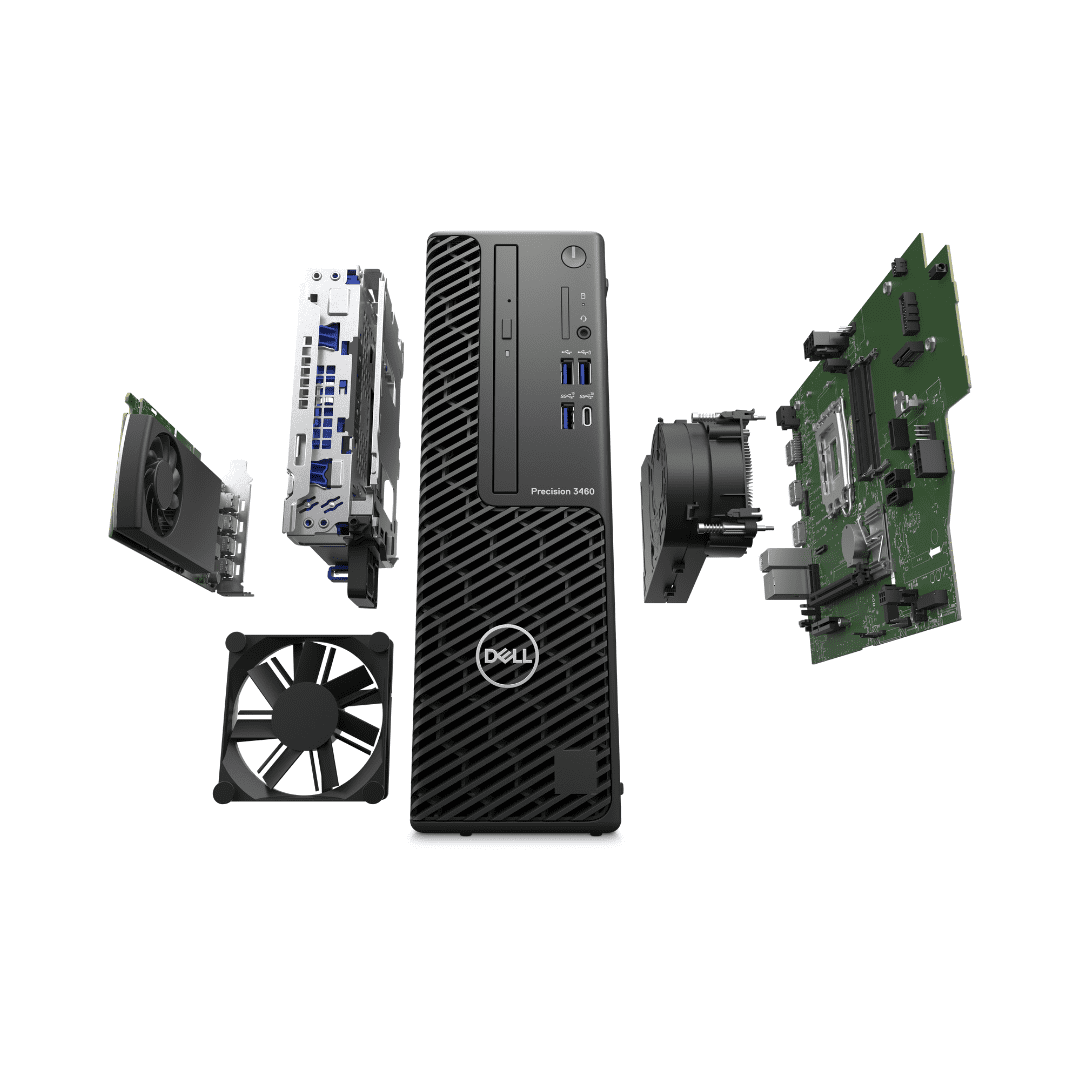

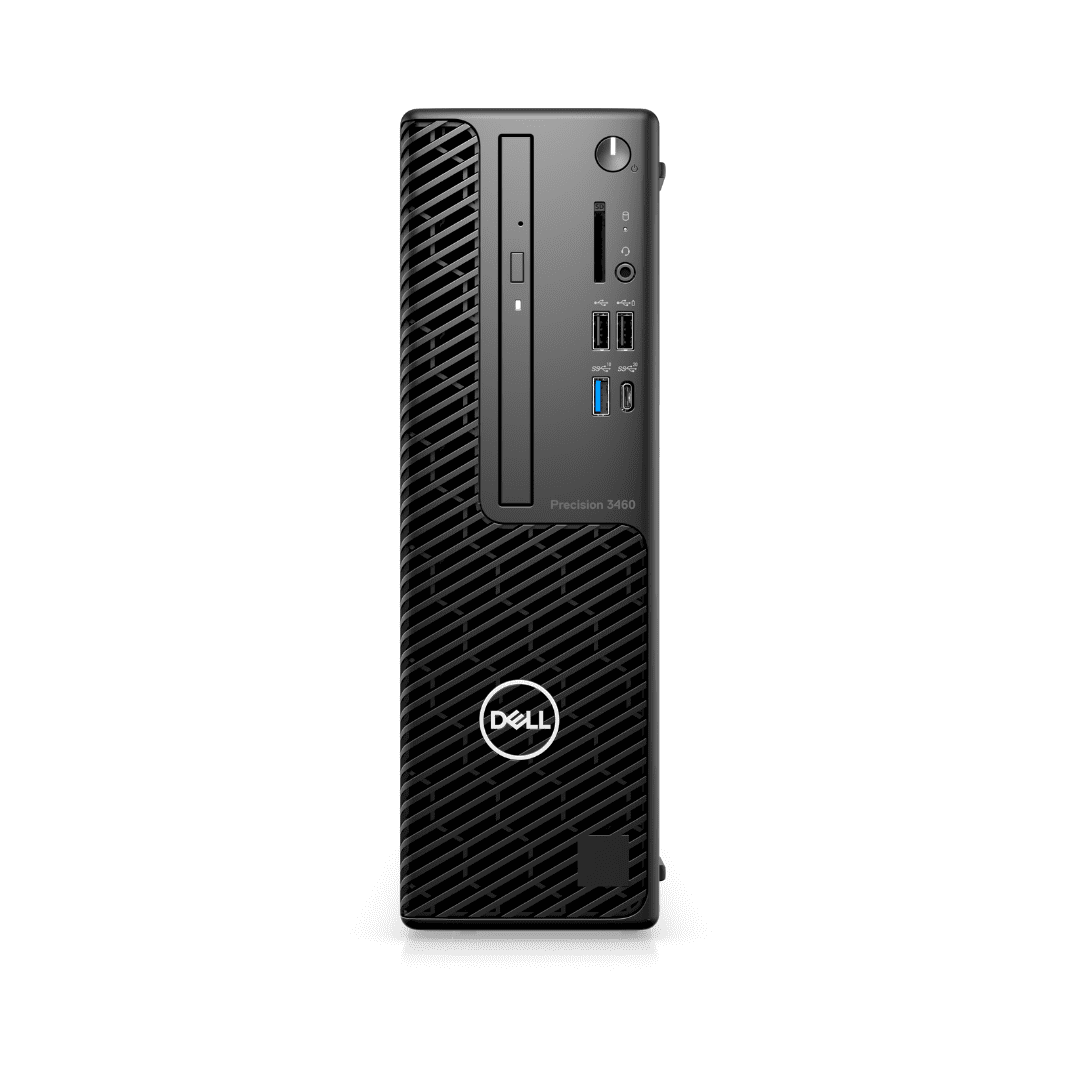

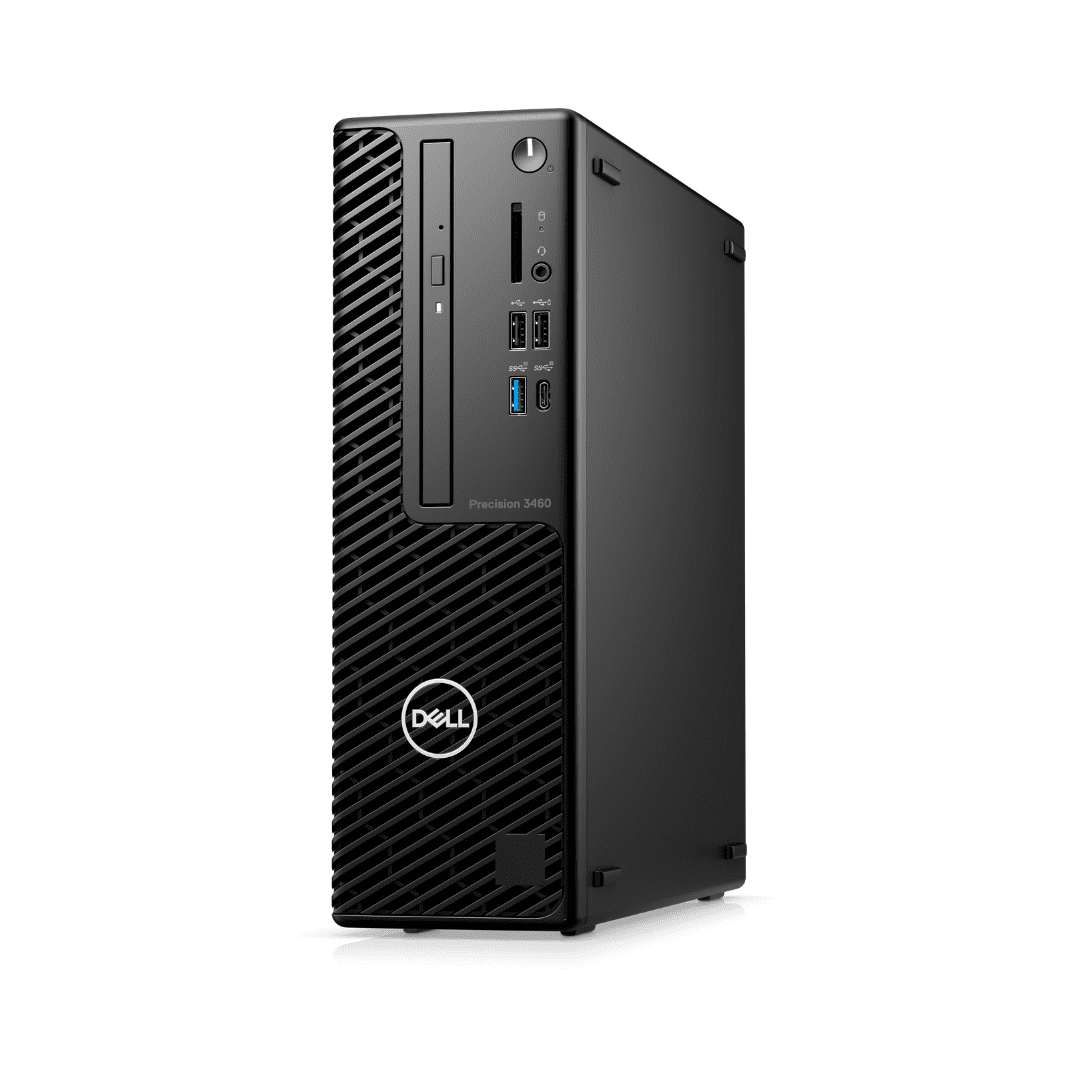

Product Specification: Dell Precision 3460 SFF Workstation
Model: Intel Core i7-14700, 16GB RAM, 1TB SSD, NVIDIA A1000, Windows 11 Pro
Overview
The Dell Precision 3460 Small Form Factor Workstation delivers professional-grade performance in a compact, space-saving chassis. Powered by a 14th Gen Intel Core i7 processor and NVIDIA RTX A1000 professional graphics, it is ISV-certified for demanding applications like CAD, engineering, and content creation. This configuration features 16GB of DDR5 RAM and a fast 1TB NVMe SSD for responsive performance and ample storage.
Technical Specifications
| Component | Details |
|---|---|
| Model | Dell Precision 3460 Small Form Factor Workstation |
| Form Factor | Small Form Factor (SFF) – Space-saving design |
| Processor | Intel® Core™ i7-14700 (14th Gen) • Cores: 20 Cores (8 Performance-cores + 12 Efficient-cores) • Threads: 28 Threads • Max Turbo Frequency: Up to 5.4 GHz • Smart Cache: 33 MB • Processor Base Power: 65 W |
| Chipset | Intel W680 |
| Memory (RAM) | 16 GB DDR5, up to 4800 MT/s (or 5600 MT/s depending on configuration) • Configuration: 1 x 16 GB or 2 x 8 GB (dual-channel recommended) • Slots: 4 x DIMM slots • Maximum Supported: Up to 128 GB ECC or non-ECC memory |
| Storage | 1 TB M.2 PCIe NVMe SSD (Gen 4.0) – High-speed storage for fast boot, application loading, and data access |
| Graphics | NVIDIA RTX A1000 (Ampere architecture) – 8 GB GDDR6 • CUDA Cores: 2,304 • Form Factor: Low-profile, single-slot • Outputs: 4 x mini-DisplayPort 1.4 • Max Displays: 4 • ISV Certified: Yes, for professional applications |
| Operating System | Windows 11 Pro (64-bit) |
| Power Supply | 300 W internal power supply, 80 PLUS Platinum (or Bronze depending on configuration) |
| Audio | Realtek ALC3204, High Definition Audio with internal speaker |
| Ethernet (LAN) | Integrated Intel® I219-LM Gigabit Ethernet Controller (10/100/1000 Mbit/s) |
| Wireless | Configurable – Intel® Wi-Fi 6E AX211 + Bluetooth 5.3 available as optional upgrade |

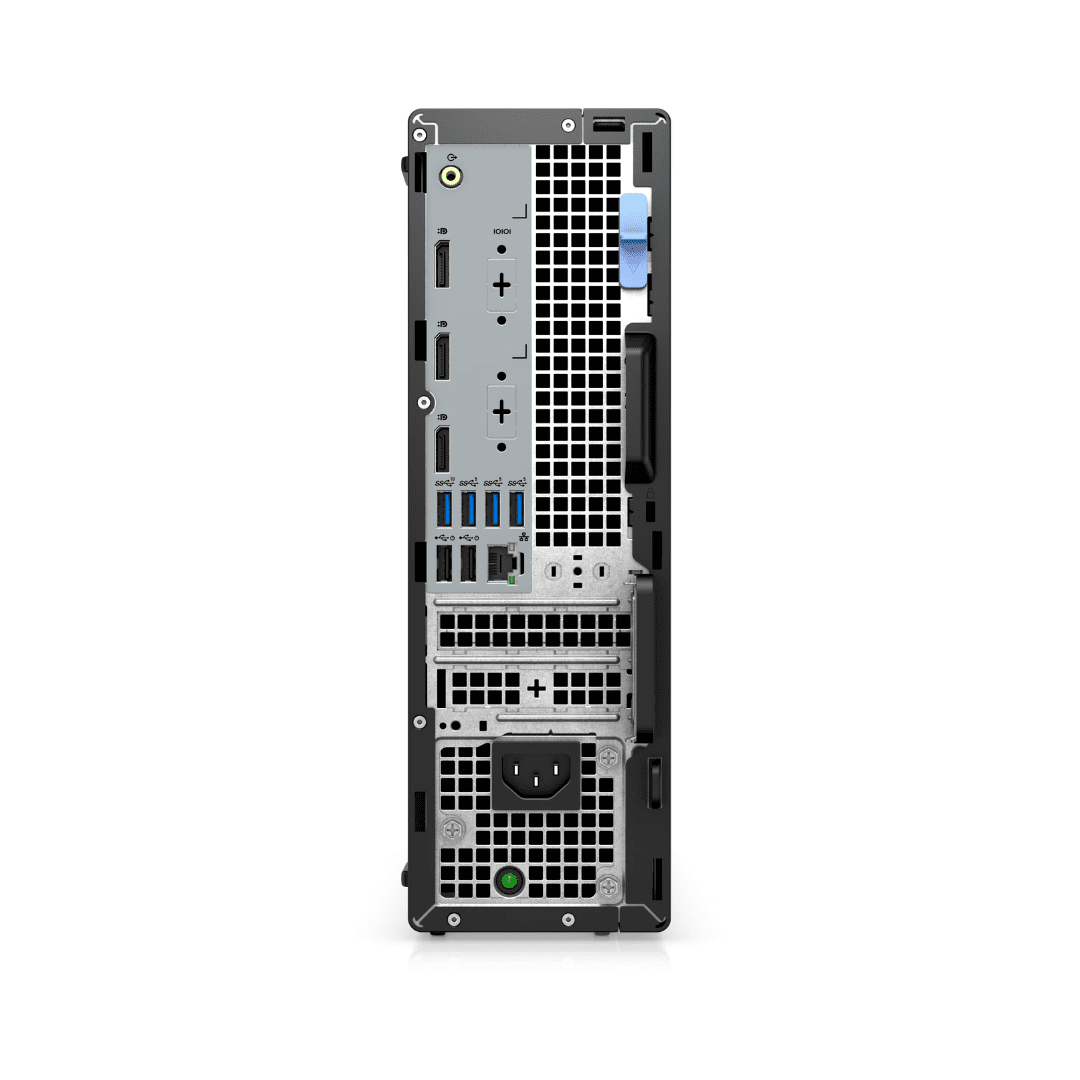

| Ports | Front: • 2 x USB 3.2 Gen 2 Type-A (10 Gbps) • 1 x USB 3.2 Gen 2×2 Type-C (20 Gbps) • 1 x USB 2.0 Type-A (480 Mbps) with PowerShare • 1 x Universal Audio Jack Rear: |
| Expansion Slots | • 1 x PCIe 5.0 x16 slot (full-height, half-length) • 1 x PCIe 4.0 x4 slot (open-ended, full-height, half-length) • 2 x PCIe 3.0 x1 slots (full-height, half-length) • 1 x M.2 2230 slot for Wi-Fi and Bluetooth combo card • 2 x M.2 2280 slots for solid-state drives (PCIe Gen 4) • 2 x SATA 3.0 slots for 2.5″/3.5″ HDD/SSD |
| Drive Bays | • 2 x 3.5″ SATA bays (internal) • 1 x 2.5″ SATA bay (internal) • 1 x Slim Optical Drive bay (optional) |
| Chassis | Form Factor: Small Form Factor (SFF) Color: Black Dimensions (H x W x D): 29.0 cm x 9.26 cm x 29.28 cm (11.42″ x 3.65″ x 11.53″) Weight: Starting at 5.13 kg (11.31 lb) |
| Security | • Discrete Trusted Platform Module (TPM) 2.0 • Kensington Security Slot • Padlock Ring • Chassis Intrusion Switch (optional) • SED (Self-Encrypting Drive) support |
| Systems Management | • Intel vPro® Enterprise (with W680 chipset) • Dell Client Command Suite • Dell Optimizer for Precision |
| ISV Certification | Certified for major ISV applications including: • CAD/CAE: AutoCAD, Revit, SolidWorks, CATIA, Creo • Media & Entertainment: Adobe Creative Suite, DaVinci Resolve • Scientific/Medical: Various |
| Environmental | Sustainability: ENERGY STAR Qualified, EPEAT Gold registered (varies by region) • Made with recycled materials |
| Durability | MIL-STD-810H tested for reliability |
| What’s Included | • Dell Precision 3460 SFF Workstation • Power Cord (AC) • Quick Start Guide & Documentation |
Graphics Card Details: NVIDIA RTX A1000
| Specification | Details |
|---|---|
| GPU Architecture | NVIDIA Ampere |
| CUDA Cores | 2,304 |
| RT Cores | 18 (2nd Gen) |
| Tensor Cores | 72 (3rd Gen) |
| Memory | 8 GB GDDR6 |
| Memory Interface | 128-bit |
| Memory Bandwidth | Up to 192 GB/s |
| Form Factor | Low-profile, single-slot |
| Outputs | 4 x mini-DisplayPort 1.4 |
| Max Displays | 4 |
| Max Resolution | 5K @ 60Hz per display |
| PCIe Interface | PCIe 4.0 x8 |
| Power Consumption | 50 W (bus-powered, no additional power connector required) |
| ISV Certification | Yes – Certified for professional applications including CAD, BIM, and DCC |
Key Features Summary
14th Gen Intel Core i7-14700: Powerful 20-core processor (8 P-cores + 12 E-cores) with up to 5.4 GHz turbo frequency – ideal for demanding professional workloads .
Professional NVIDIA RTX A1000 Graphics: 8GB GDDR6 VRAM, 2,304 CUDA cores, RT and Tensor cores for ray tracing and AI acceleration – ISV-certified for CAD, engineering, and creative applications .
Fast Memory & Storage: 16GB of DDR5 RAM (upgradeable to 128GB) and a 1TB NVMe SSD ensure lightning-fast performance and ample storage .
Compact SFF Design: Space-saving chassis fits easily in tight workspaces while offering extensive expansion capabilities .
ISV Certification: Guaranteed compatibility and performance for professional software applications .
Intel W680 Chipset with vPro®: Enterprise-grade stability, security, and remote manageability .
Expandability: Multiple PCIe slots (including PCIe 5.0 x16), M.2 slots for SSDs, and SATA bays for future upgrades .
Professional-Grade Reliability: Engineered for 24/7 operation with rigorous testing and validation .
Dell Optimizer: AI-based optimization for performance, audio, and productivity .
NVIDIA RTX Technology: Hardware-accelerated ray tracing and AI capabilities for enhanced visualization .
Ideal For:
Engineers, architects, designers, content creators, and professionals requiring:
✅ ISV-certified workstation performance for CAD, BIM, and creative applications
✅ Professional NVIDIA RTX A1000 graphics with 8GB VRAM for complex models and rendering
✅ Fast 1TB NVMe storage for quick access to projects and files
✅ 16GB memory (upgradeable to 128GB) for smooth multitasking
✅ Compact form factor for space-constrained environments
✅ Enterprise-grade security with vPro and TPM 2.0
✅ Extensive expandability for future upgrades
Contact for Quotation:
For pricing, availability, and configuration confirmation for this specific workstation, please contact our sales team.
📱 WhatsApp: 017-910 0013
📧 Email: ecomm@ithinktech.com.my
*PLEASE CHAT WITH US BEFORE PLACING YOUR ORDER
